Aerogel

Aerogel insulation is up to five times more effective than traditional insulation materials, while being industrially robust across a broad temperature range in a space-saving, easy-to-use form, making it the most efficient industrial insulation on the market. Aerogel is the world’s lowest density solid and most effective thermal insulator. It is available in rolls or fabricated pieces for cryogenic, ambient and high temperature applications. Aerogel is a great solution for hot spots or very tight spaces.

Aspen Aerogel Logo
  • Pyrogel® XTE
    (moreless info)

    Product Specs

    Density: 12.5 lb/ft3
    Thickness: 5mm and 10mm
    Width: 58" nominal
    Operating Temperature: 32F to 1200F
    Color: Maroon
    Applications: Power generation, Appliance "Hot Spots", piping, pumps and vessels

    Call 888-918-0800 or Request More Information.
  • Pyrogel® XTF
    (moreless info)

    Product Specs

    Density: 12.5 lb/ft3
    Thickness: 10mm nominal
    Width: 58" nominal
    Operating Temperature: 32F to 1200F
    Color: Grey
    Applications: passive fire protection in high temperature applications like hydrocarbon pool and jet fire protection

    Call 888-918-0800 or Request More Information.
  • Pyrogel® 2250
    (moreless info)

    Product Specs

    Density: 10.7 lb/ft3
    Thickness: 3mm nominal
    Width: 58" nominal
    Operating Temperature: 32F to 392F
    Color: Black
    Applications: Battery/electronics protection, small diameter tubing, clothing, medical devices, transportation

    Call 888-918-0800 or Request More Information.
  • Cryogel® Z
    (moreless info)

    Product Specs

    Density: 10 lb/ft3
    Thickness: 5mm and 10mm, includes an integral foil, zero permeance vapor retarder
    Width: 58" nominal
    Operating Temperature: -320F to 257F
    Color: White, includes silver foil laminate on one side
    Applications: Aerospace, cryogenic equipment, LNG storage and piping

    Call 888-918-0800 or Request More Information.
  • Cryogel® x201
    (moreless info)

    Product Specs

    Density: 10 lb/ft3
    Thickness: 5mm and 10mm
    Width: 58" nominal
    Operating Temperature: -320F to 390F
    Color: White
    Applications: Cryogenic applications, automotive, appliances, electronics, cold storage, transportation, aerospace

    Call 888-918-0800 or Request More Information.

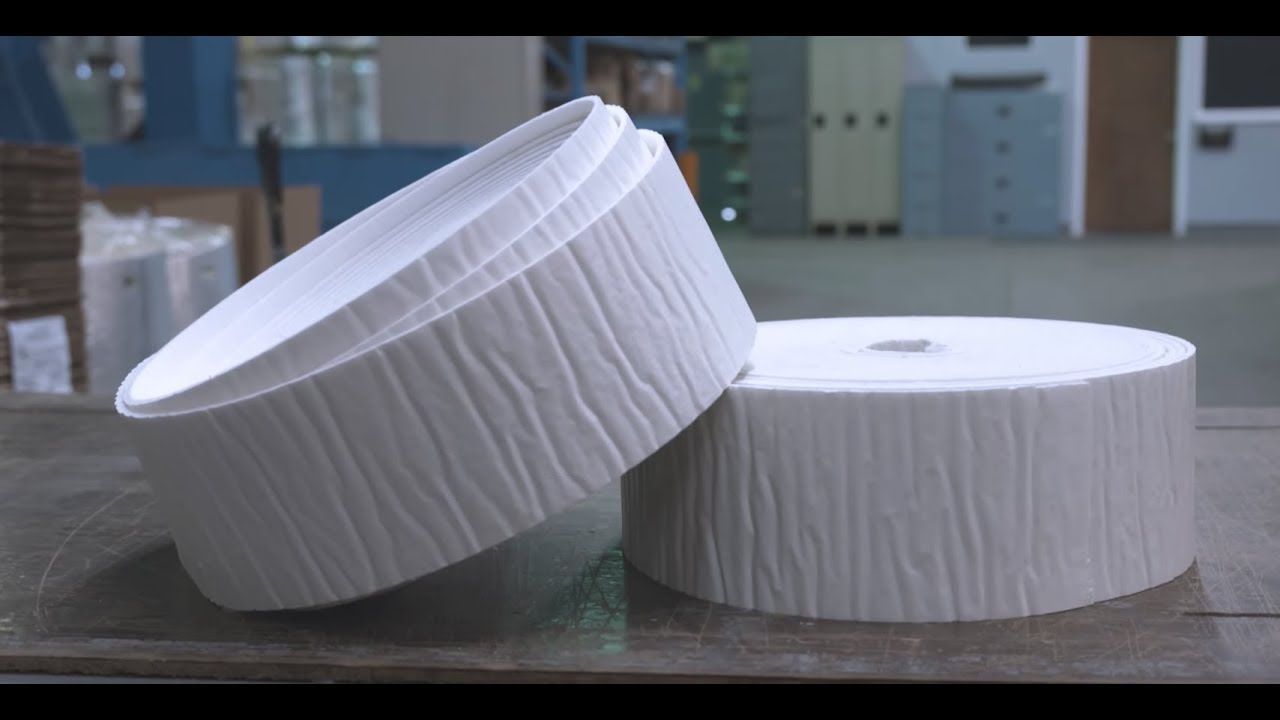

  • UltraGard® - Pipe Wrap
    (moreless info)

    Product Specs

    Density: 10 lb/ft3
    Thickness: 5mm and 10mm (Cryogel Z 10mm version includes foil laminate)
    Dimensions: 1.5" x 58"
    Operating Temperature: Varies; -320 to 390F or 32 to 1200F
    Color: White, Maroon
    Applications: Pipe wrap for cold and hot applications

    Call 888-918-0800 or Request More Information.
